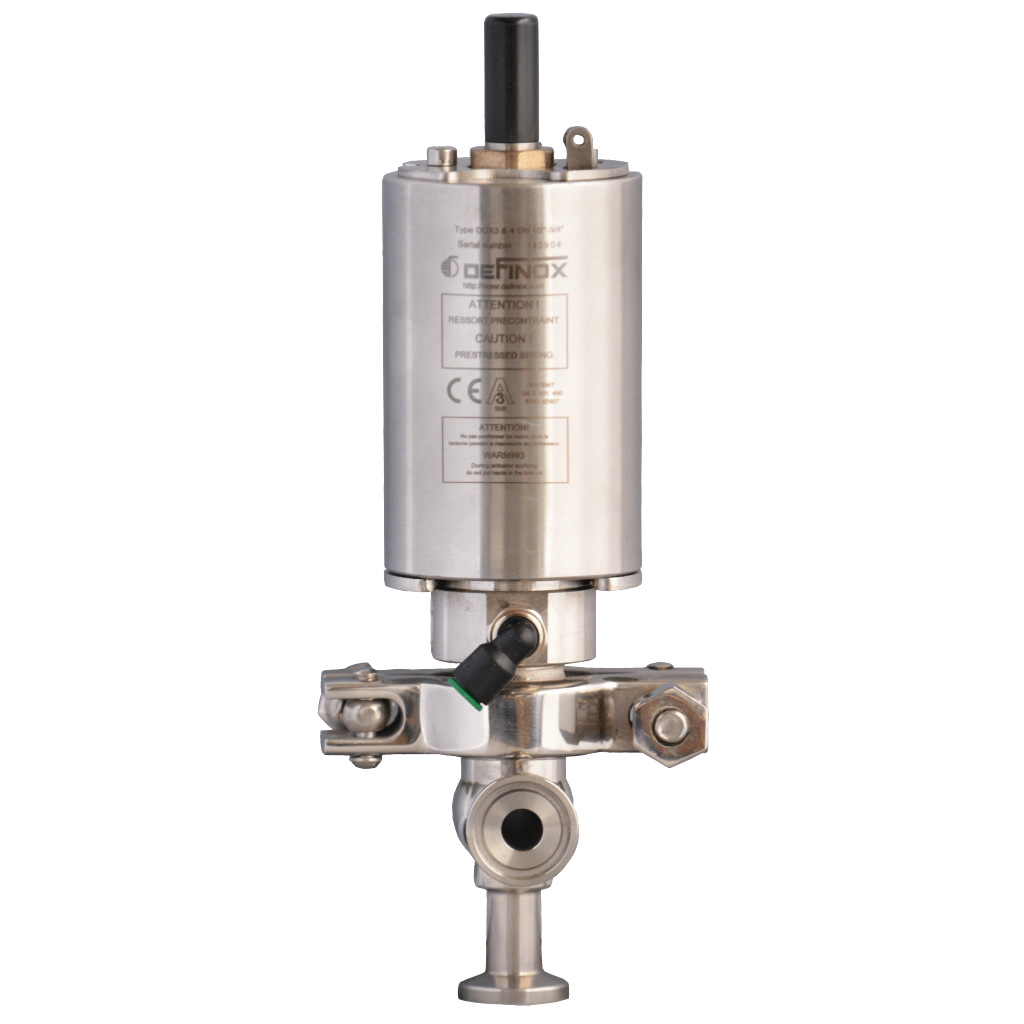

Definox Adjustable Relief DCX3 Flow Control Valves

Contact Us

If you are interested in this product, please contact us for further assistance.

SPECIFICATIONS

Size Range: 1/2”, 3/4”, 1″, 1-1/2”, 2″, 2-1/2”, 3”, 4”

Max. working pressure: 0-150 PSI

Materials:

Body: 316L SS

Stem: 316L SS

Actuator: 304 SS

Seals:

Valve seals: PFA floating plug seal, FKM stem seal & body seal

Optional seals: EPDM, FKM, or Silicone plug seal, EPDM or Silicone stem & body seal

Connections: OD tube butt weld, sanitary clamp

Features:

  • Reduction of tolerance of the adjustment value
  • Easy to adjust with a standard wrench
  • High precision of response during excess pressure
  • Working security – protection against excessive pressure
  • Compact – Adjustment system integrated in the valve

Service Conditions:

Max. temperature: 248ºF (depending on seal type)

Min. temperature: 23ºF
