TOP-FLO® EZ Series Actuators For Forged Diaphragm Valves

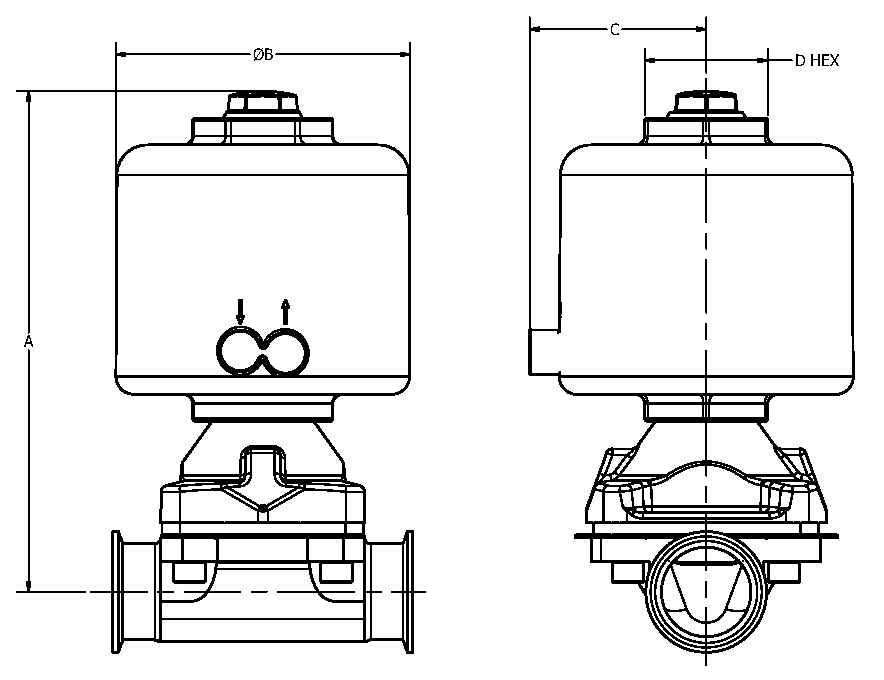

Part Number	Size	TOP-FLO® Ready-To-Go	A	B	C	D
74L3-E4-1K-50-20RA-316L-A	1/2	Yes	6.24	3.50	2.24	1.38
74L3-E4-1K-50-20RA-316L-A	1/2	Yes	6.24	3.50	2.24	1.38
74L3-E4-1K-75-20RA-316L-A	3/4	Yes	7.20	4.28	2.61	1.69
74L3-E4-1K-10-20RA-316L-A	1	Yes	7.49	4.28	2.61	1.69
74L3-E4-1K-15-20RA-316L-A	1-1/2	Yes	10.05	6.13	3.68	2.56
74L3-E4-1K-20-20RA-316L-A	2	Yes	10.39	6.13	3.68	2.56
74L3-E4-2E-50-20RA-316L-A	1/2	Yes	6.24	3.50	2.24	1.38
74L3-E4-2E-75-20RA-316L-A	3/4	Yes	7.20	4.28	2.61	1.69
74L3-E4-2E-10-20RA-316L-A	1	Yes	7.49	4.28	2.61	1.69
74L3-E4-2E-15-20RA-316L-A	1-1/2	Yes	10.05	6.13	3.68	2.56
74L3-E4-2E-20-20RA-316L-A	2	Yes	10.39	6.13	3.68	2.56
74L3-E7-1K-50-20RA-316L-A	1/2	Yes	6.24	3.50	2.24	1.38
74L3-E7-1K-75-20RA-316L-A	3/4	Yes	7.20	4.28	2.61	1.69
74L3-E7-1K-10-20RA-316L-A	1	Yes	7.49	4.28	2.61	1.69
74L3-E7-1K-15-20RA-316L-A	1-1/2	Yes	10.05	6.13	3.68	2.56
74L3-E7-1K-20-20RA-316L-A	2	Yes	10.39	6.13	3.68	2.56
78L3-E4-1K-50-20RA-316L-A	1/2	Yes	6.24	3.50	2.24	1.38
78L3-E4-1K-75-20RA-316L-A	3/4	Yes	7.20	4.28	2.61	1.69
78L3-E4-1K-10-20RA-316L-A	1	Yes	7.49	4.28	2.61	1.69
78L3-E4-1K-15-20RA-316L-A	1-1/2	Yes	10.05	6.13	3.68	2.56
78L3-E4-1K-20-20RA-316L-A	2	Yes	10.39	6.13	3.68	2.56

Technical data
