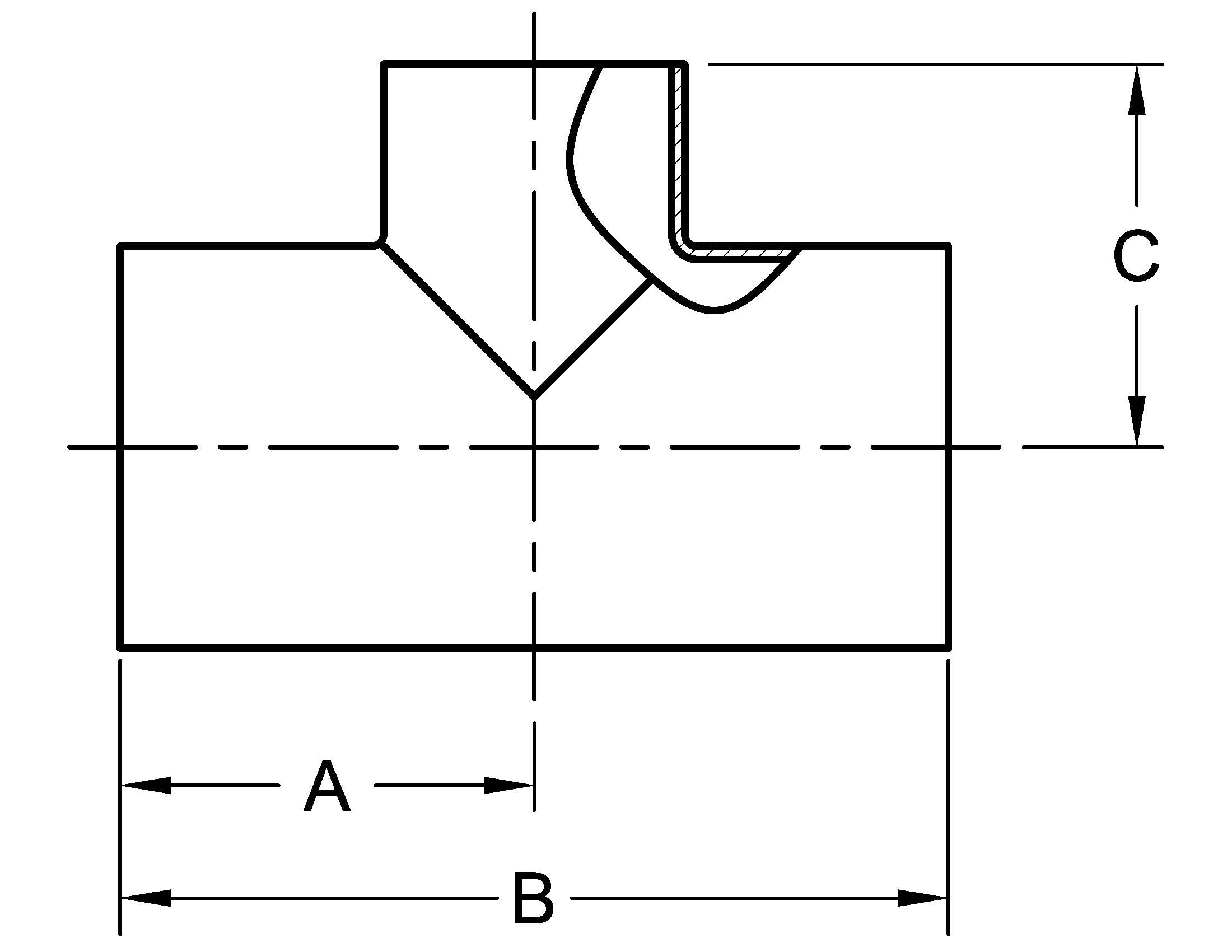

7RWWW REDUCING TEE, WELD ENDS (SHORT)
| Part Number | Size (inches) | A | B | C |
|---|---|---|---|---|
| 7RWWW-1.5X1 | 1 1/2 X 1 | 1.656 | 3.312 | 1.375 |
| 7RWWW-2X1 | 2 X 1 | 2.062 | 4.125 | 1.625 |
| 7RWWW-2X1.5 | 2 X 1 1/2 | 2.062 | 4.125 | 1.905 |
| 7RWWW-2.5X1 | 2 1/2 X 1 | 2.344 | 4.688 | 1.875 |
| 7RWWW-2.5X1.5 | 2 1/2 X 1 1/2 | 2.344 | 4.688 | 2.156 |
| 7RWWW-2.5X2 | 2 1/2 X 2 | 2.344 | 4.688 | 2.312 |
| 7RWWW-3X1 | 3 X 1 | 2.594 | 5.188 | 2.125 |
| 7RWWW-3X1.5 | 3 X 1 1/2 | 2.594 | 5.188 | 2.406 |
| 7RWWW-3X2 | 3 X 2 | 2.594 | 5.188 | 2.562 |
| 7RWWW-3X2.5 | 3 X 2 1/12 | 2.594 | 5.188 | 2.594 |
| 7RWWW-4X1 | 4 X 1 | 3.438 | 6.875 | 2.625 |
| 7RWWW-4X1.5 | 4 X 1 1/2 | 3.438 | 6.875 | 2.906 |
| 7RWWW-4X2 | 4 X 2 | 3.438 | 6.875 | 3.062 |
| 7RWWW-4X2.5 | 4 X 2 1/2 | 3.438 | 6.875 | 3.094 |
| 7RWWW-4X3 | 4 X 3 | 3.438 | 6.875 | 3.094 |
| 7RWWW-6X3 | 6 X 3 | 5.625 | 11.250 | 4.875 |
| 7RWWW-6X4 | 6 X 4 | 5.625 | 11.250 | 5.125 |
| 7RWWW-8X4 | 8 X 4 | 7.000 | 14.000 | 6.125 |
| 7RWWW-8X6 | 8 X 6 | 7.000 | 14.000 | 6.625 |
