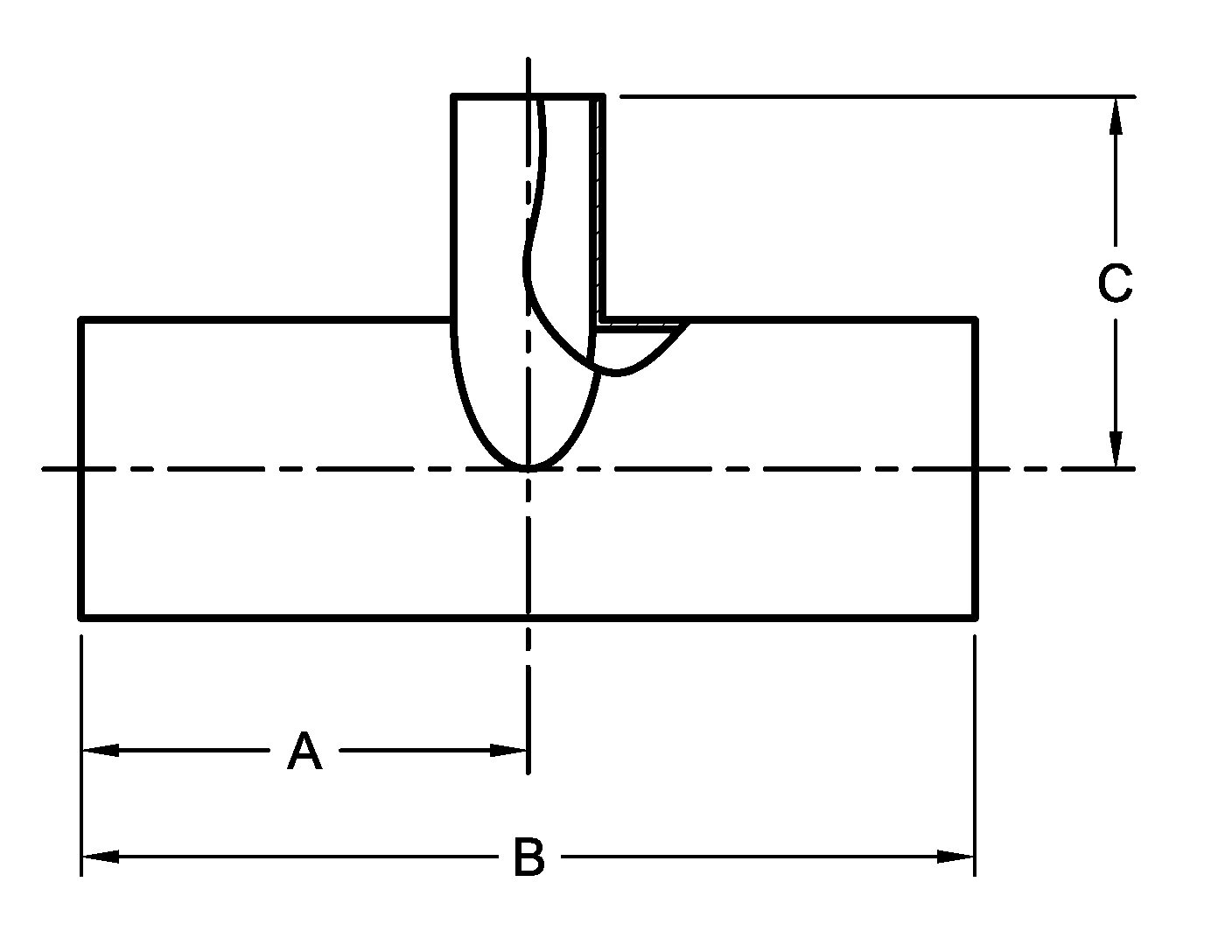

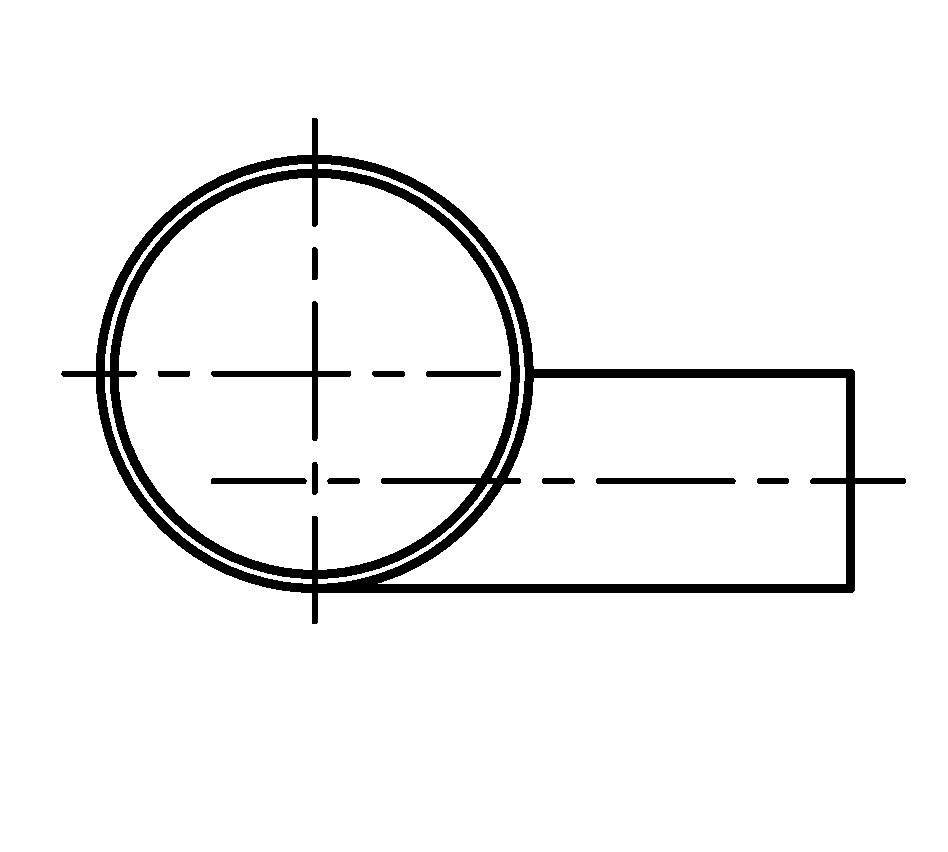

7ERWWW TANGENTIAL REDUCING TEE, WELD ENDS

Part Number	Size (inches)	A	B	C	STP File
7ERWWW-1.5X1	1 1/2 X 1	1.656	3.312	1.375
7ERWWW-2X1	2 X 1	2.062	4.125	1.625	STP
7ERWWW-2X1.5	2 X 1 1/2	2.062	4.125	1.905	STP
7ERWWW-2.5X1	2 1/2 X 1	2.344	4.688	1.875
7ERWWW-2.5X1.5	2 1/2 X 1 1/2	2.344	4.688	2.156	STP
7ERWWW-2.5X2	2 1/2 X 2	2.344	4.688	2.312	STP
7ERWWW-3X1	3 X 1	2.594	5.188	2.125
7ERWWW-3X1.5	3 X 1 1/2	2.594	5.188	2.406	STP
7ERWWW-3X2	3 X 2	2.594	5.188	2.562	STP
7ERWWW-3X2.5	3 X 2 1/2	2.594	5.188	2.594	STP
7ERWWW-4X1	4 X 1	3.438	6.875	2.625
7ERWWW-4X1.5	4 X 1 1/2	3.438	6.875	2.906	STP
7ERWWW-4X2	4 X 2	3.438	6.875	3.062	STP
7ERWWW-4X2.5	4 X 2 1/2	3.438	6.875	3.094	STP
7ERWWW-4X3	4 X 3	3.438	6.875	3.094	STP
