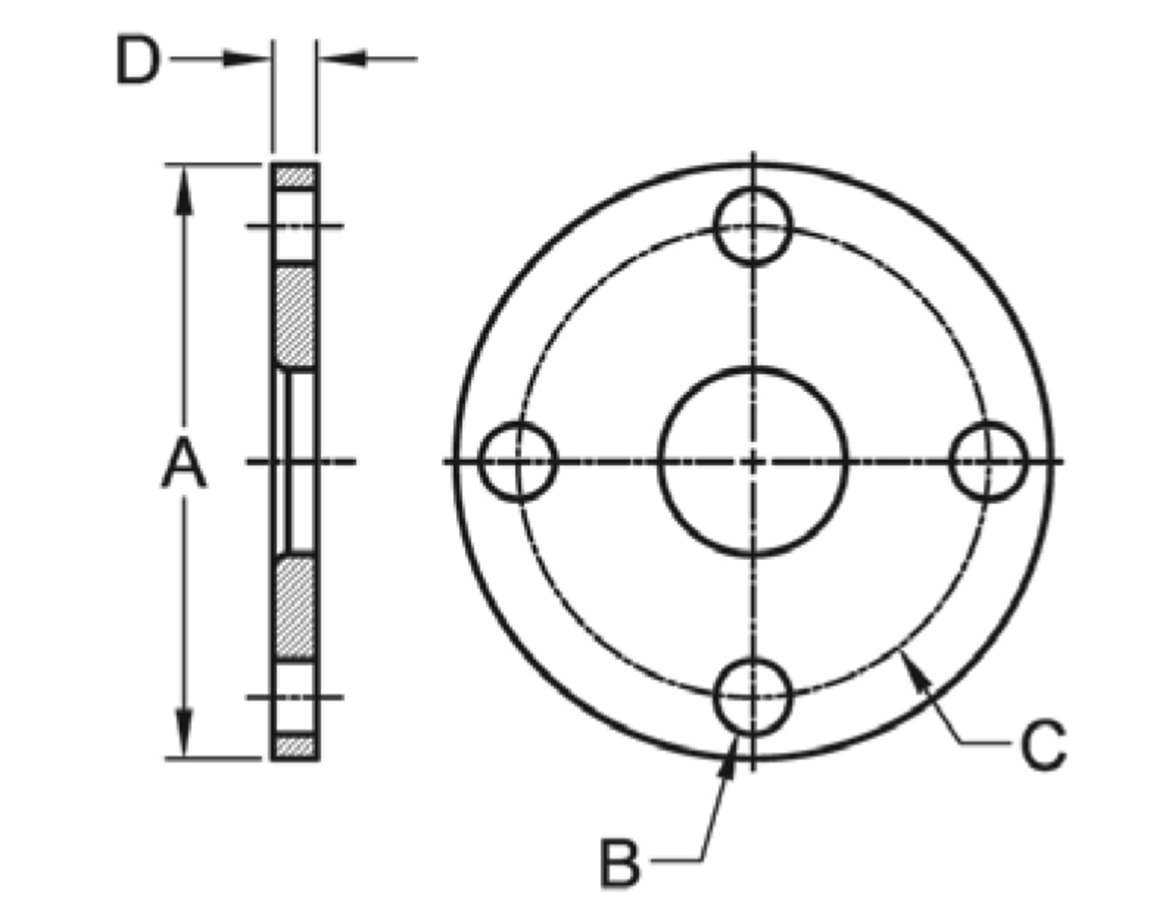

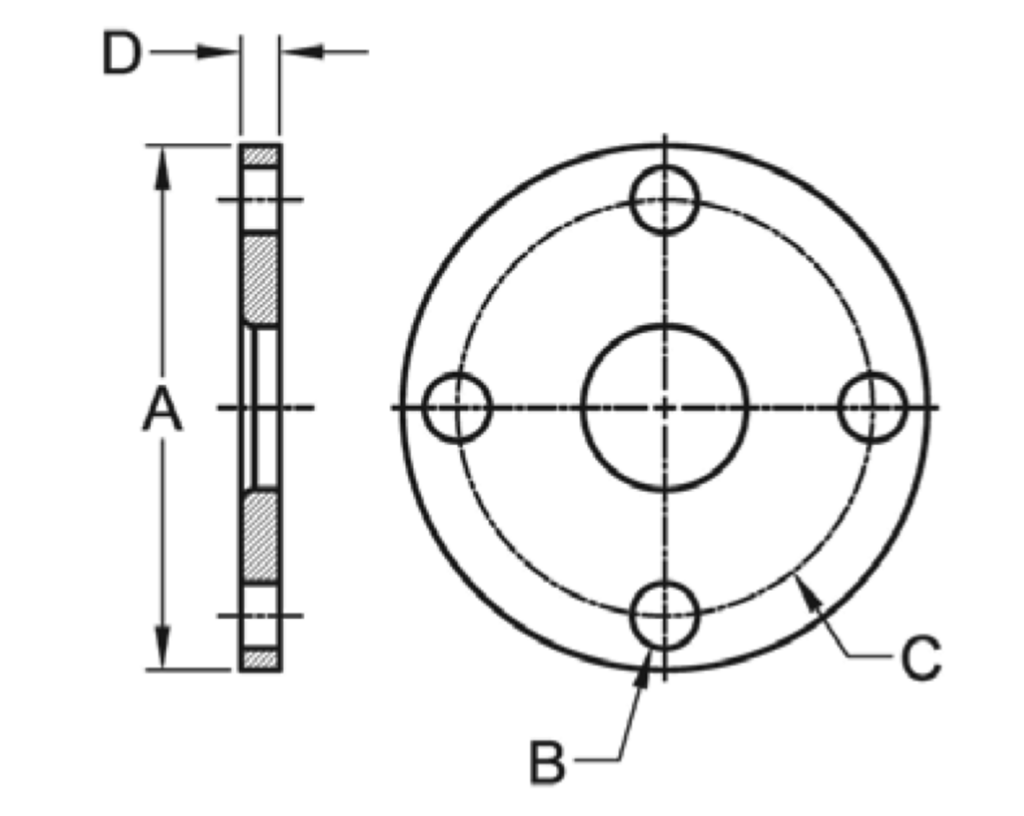

38SL SLIP ON FLANGE

Part Number	Size (inches)	A	B	C	D	STP File
38SL-1	1	4.250	0.625	3.125	0.375	STP
38SL-1.5	1 1/2	5.000	0.625	3.875	0.375	STP
38SL-2	2	6.000	0.750	4.750	0.438	STP
38SL-2.5	2 1/2	7.000	0.750	5.500	0.438	STP
38SL-3	3	7.500	0.750	6.000	0.500	STP
38SL-4	4	9.000	0.750	7.500	0.500	STP
38SL-6	6	11.000	0.875	9.500	0.563	STP
38SL-8	8	13.500	0.875	11.750	0.563

Features:

Flange gasket kit available. Flanges are flat face, light duty, 4″ and up have 8 bolt holes (150lb bolt hole pattern all sizes)
