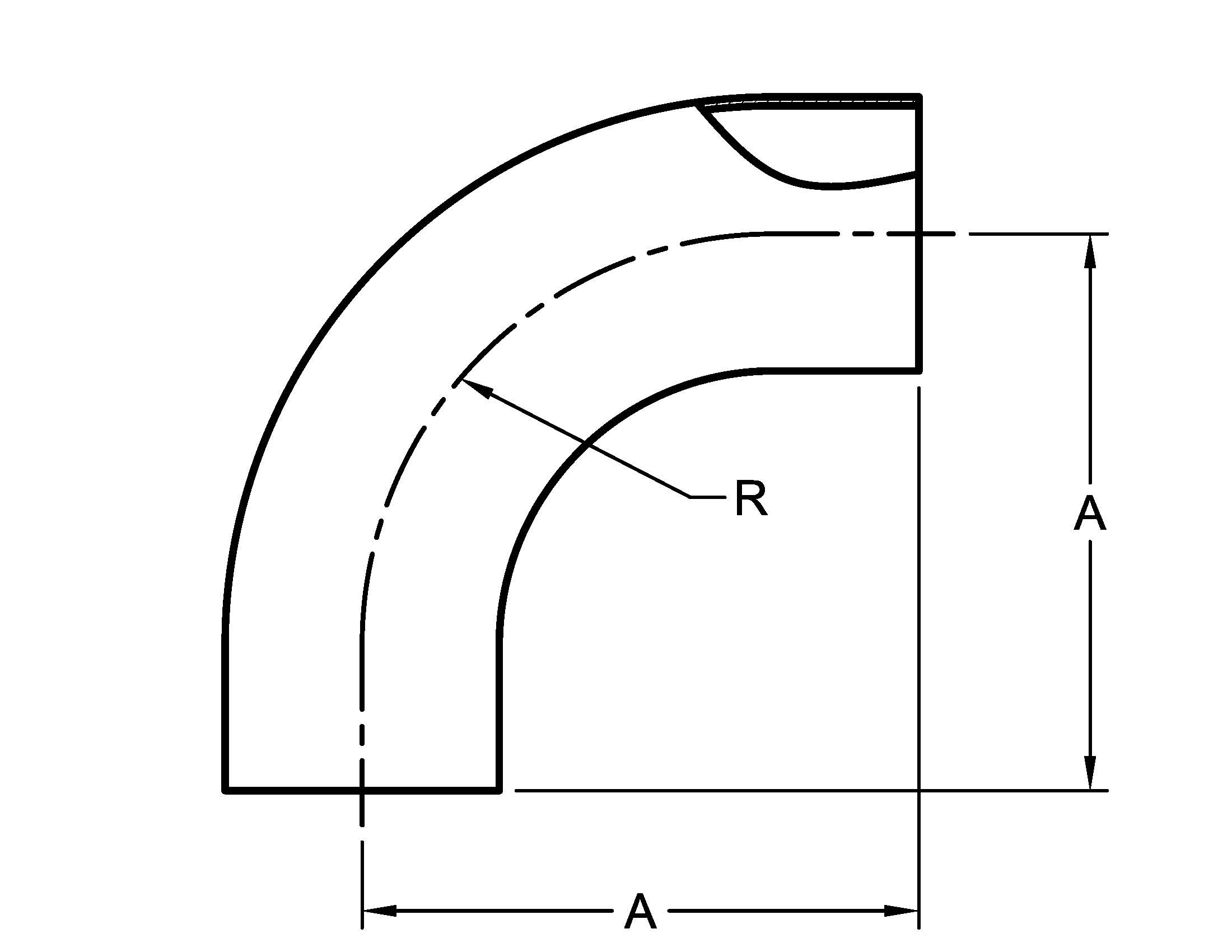

L2S 90 DEGREE ELBOW, TANGET WELD ENDS
Part Number | Size (inches) | A | R | STP File |
---|---|---|---|---|
L2S-.50 | 1/2 | 3.000 | 0.75 | STP |
L2S-.50L | 1/2 | 3.000 | 1.13 | STP |
L2S-.75 | 3/4 | 3.000 | 1.13 | STP |
L2S-1 | 1 | 2.062 | 1.50 | STP |
L2S-1.5 | 1 1/2 | 2.937 | 2.25 | STP |
L2S-2 | 2 | 4.062 | 3.00 | STP |
L2S-2.5 | 2 1/2 | 5.187 | 3.75 | STP |
L2S-3 | 3 | 6.312 | 4.50 | STP |
L2S-4 | 4 | 8.312 | 6.00 | STP |
L2S-6 | 6 | 11.000 | 9.00 | STP |
