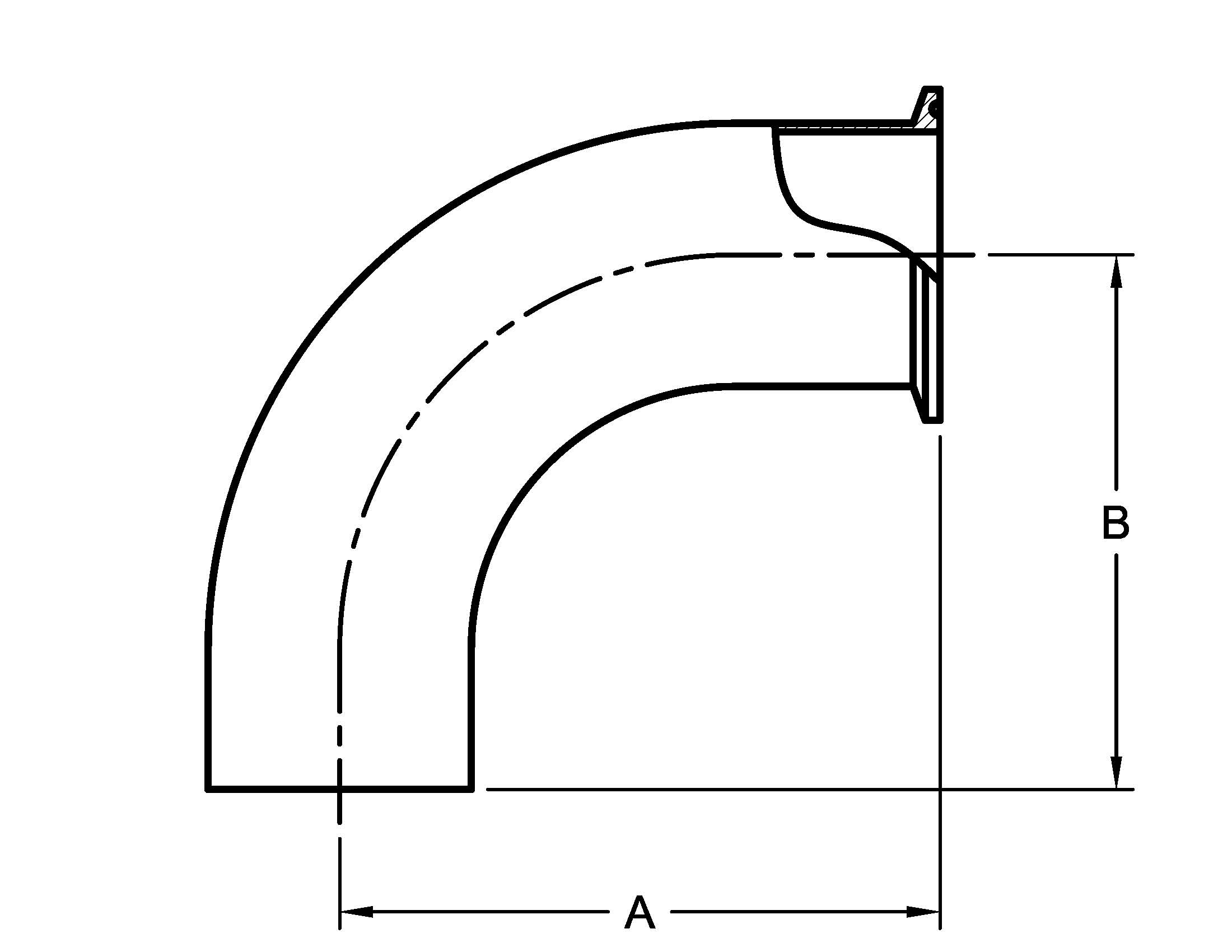

L2CM 90 DEGREE ELBOW, WELD X CLAMP
Part Number | Size (inches) | A | B | STP File |
---|---|---|---|---|
L2CM-1 | 1 | 2.563 | 2.063 | STP |
L2CM-1.5 | 1 1/2 | 3.438 | 2.938 | STP |
L2CM-2 | 2 | 4.563 | 4.063 | STP |
L2CM-2.5 | 2 1/2 | 5.688 | 5.188 | STP |
L2CM-3 | 3 | 6.813 | 6.313 | STP |
L2CM-4 | 4 | 8.938 | 8.313 | STP |
