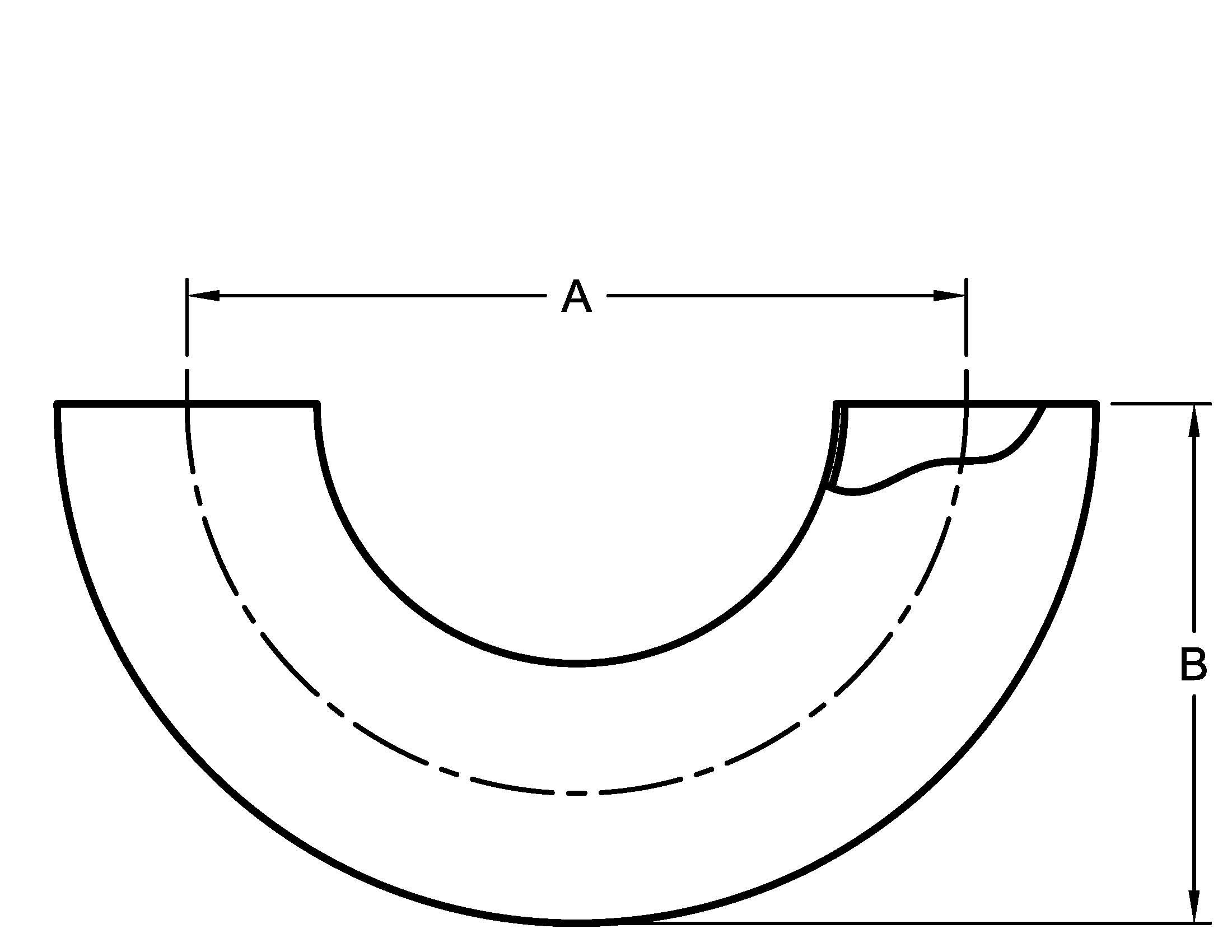

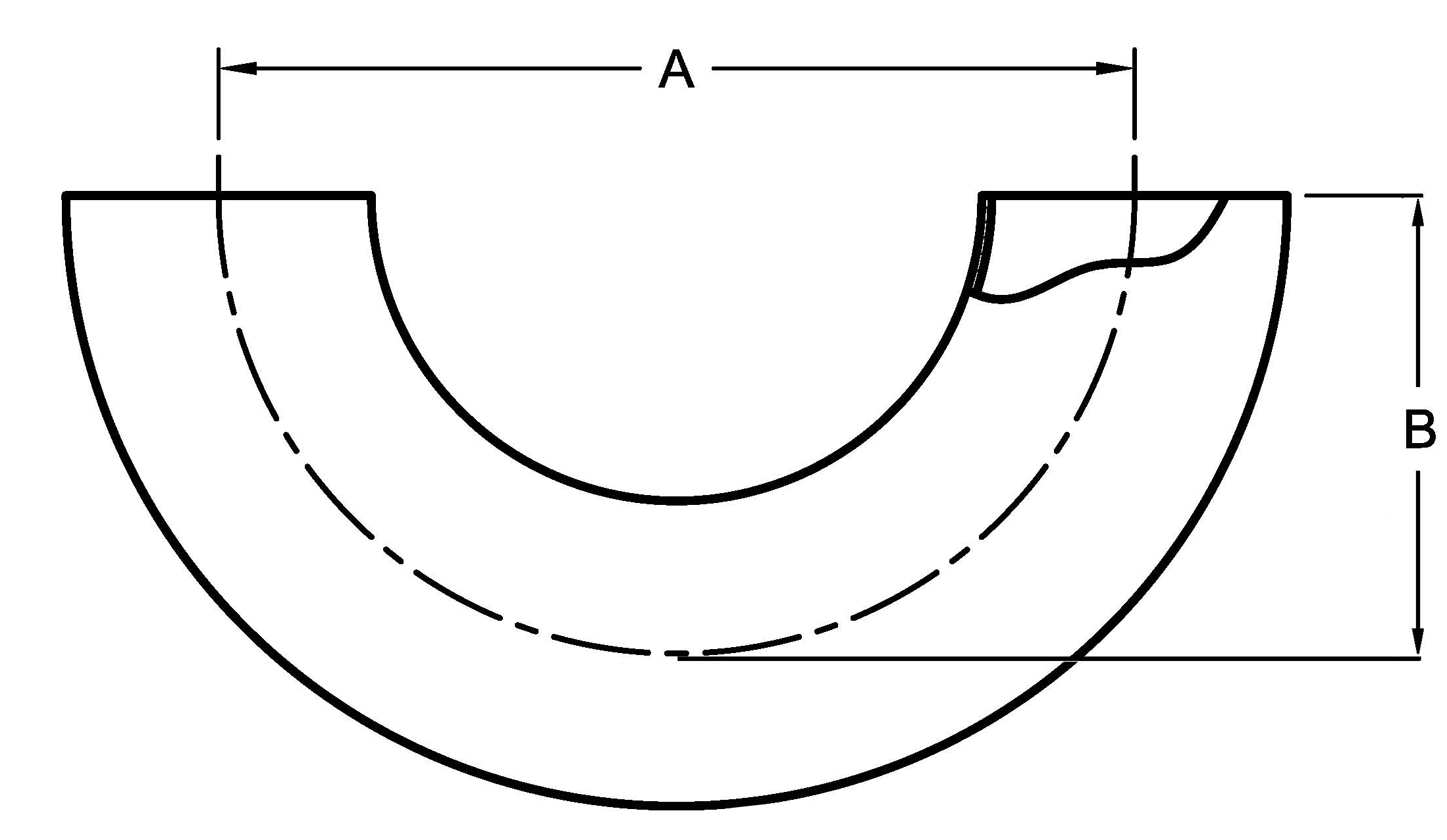

2WU 180 DEGREE RETURN BEND, WELD ENDS
Part Number | Size (inches) | A | B | STP File |
---|---|---|---|---|
2WU-1 | 1 | 3.000 | 1.500 | STP |
2WU-1.5 | 1 1/2 | 4.500 | 2.250 | STP |
2WU-2 | 2 | 6.000 | 3.000 | STP |
2WU-3 | 3 | 9.000 | 4.500 | STP |
2WU-4 | 4 | 12.000 | 6.000 | STP |
Part Number | Size (inches) | A | B | STP File |
---|---|---|---|---|
2WU-1 | 1 | 3.000 | 1.500 | STP |
2WU-1.5 | 1 1/2 | 4.500 | 2.250 | STP |
2WU-2 | 2 | 6.000 | 3.000 | STP |
2WU-3 | 3 | 9.000 | 4.500 | STP |
2WU-4 | 4 | 12.000 | 6.000 | STP |
