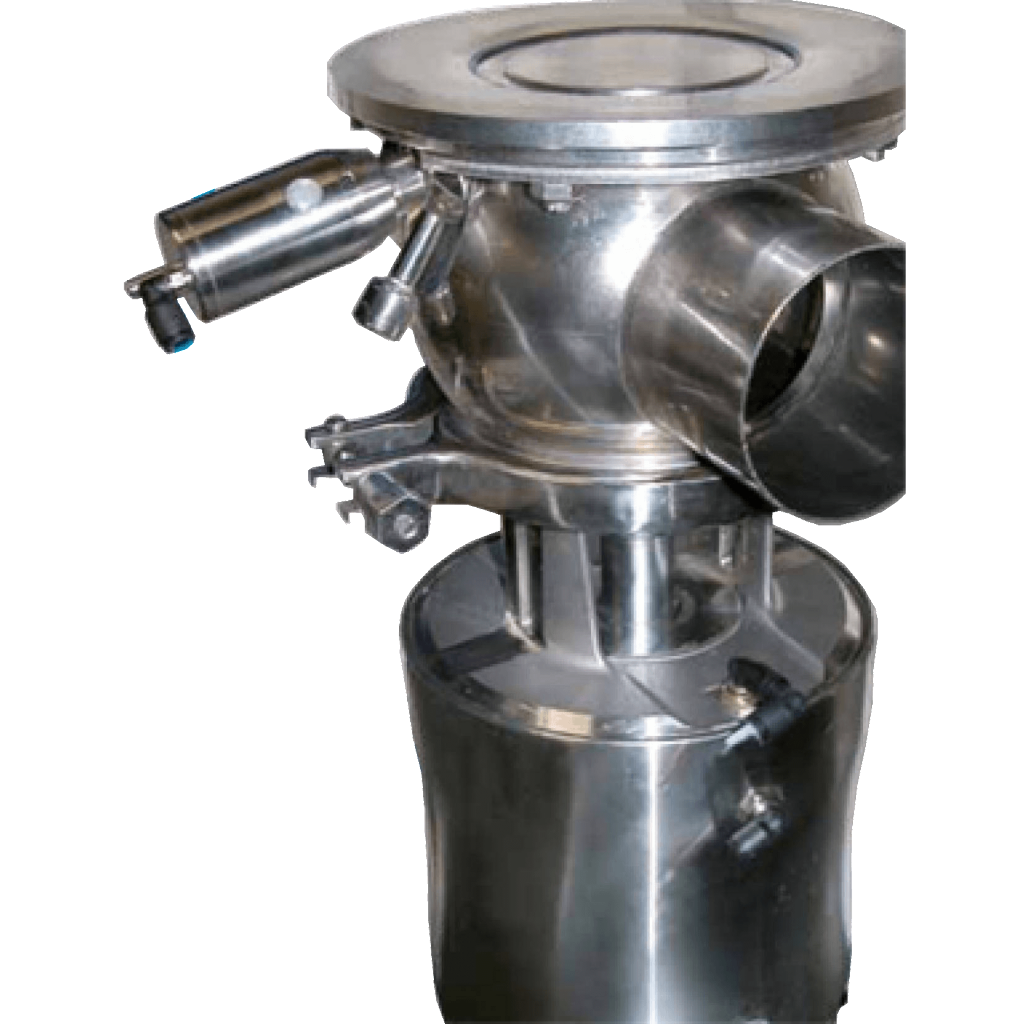

Definox VDCI-MC FdC – Tank Bottom Mixproof Flow Control Valves

Contact Us

If you are interested in this product, please contact us for further assistance.

SPECIFICATIONS

Size Range: 2”, 2-1/2”, 3”, 4”

Materials:

Body/Stem: 316L SS

Operator: 304 SS

Valve seals: PFA floating plug seal, independent plug seal, FKM stem seal, body seal, leak chamber plug seal

Optional seals: EPDM stem seal, body seal, leak chamber plug seal

Tank Connection: Special tank flange for welding

Connections: OD tube butt weld, Sanitary clamp, Others upon request

Signal Equipment: ACS Control top – valve sizes 2”– 4”, Network options: point-to-point & AS-i (others upon request), optional lantern mounted proximity switch for upper seat lift detection

Surface Finish: Ra Interior = 32Ra, Ra Exterior = 40-50Ra

Features:

  • Patented PFA floating plug seal & independent lifting plug seal that is easily cleaned during CIP and offers outstanding sealing at high temperatures and excellent chemical resistance.
  • Body and plug shape provide minimal fluid retention area.
  • Clamp-style operator connection (manual and automated) for easy inspection and maintenance.
  • Heavy wall machined spherical bodies guarantee excellent resistance to thermal expansion and contraction.
  • Clamp-style operator connection for easy inspection and maintenance.
  • Heavy wall machined spherical bodies guarantee excellent resistance to thermal expansion and contraction.

Max. temperature: 284°F

Max. differential temp: 194° (between upper and lower line)

Min. temperature:  23°F

Max. working pressure: 58 psi (in the tank)

Max. working pressure: 87 psi (through the valve)

Sealing pressure: 101 psi

Actuator air supply: 80 psi Minimum / 116 psi Maximum

Vacuum resistance: 0.4 cm³/s
