Definox DCX3 FdC Tank Bottom Shut Off Flow Control Valves

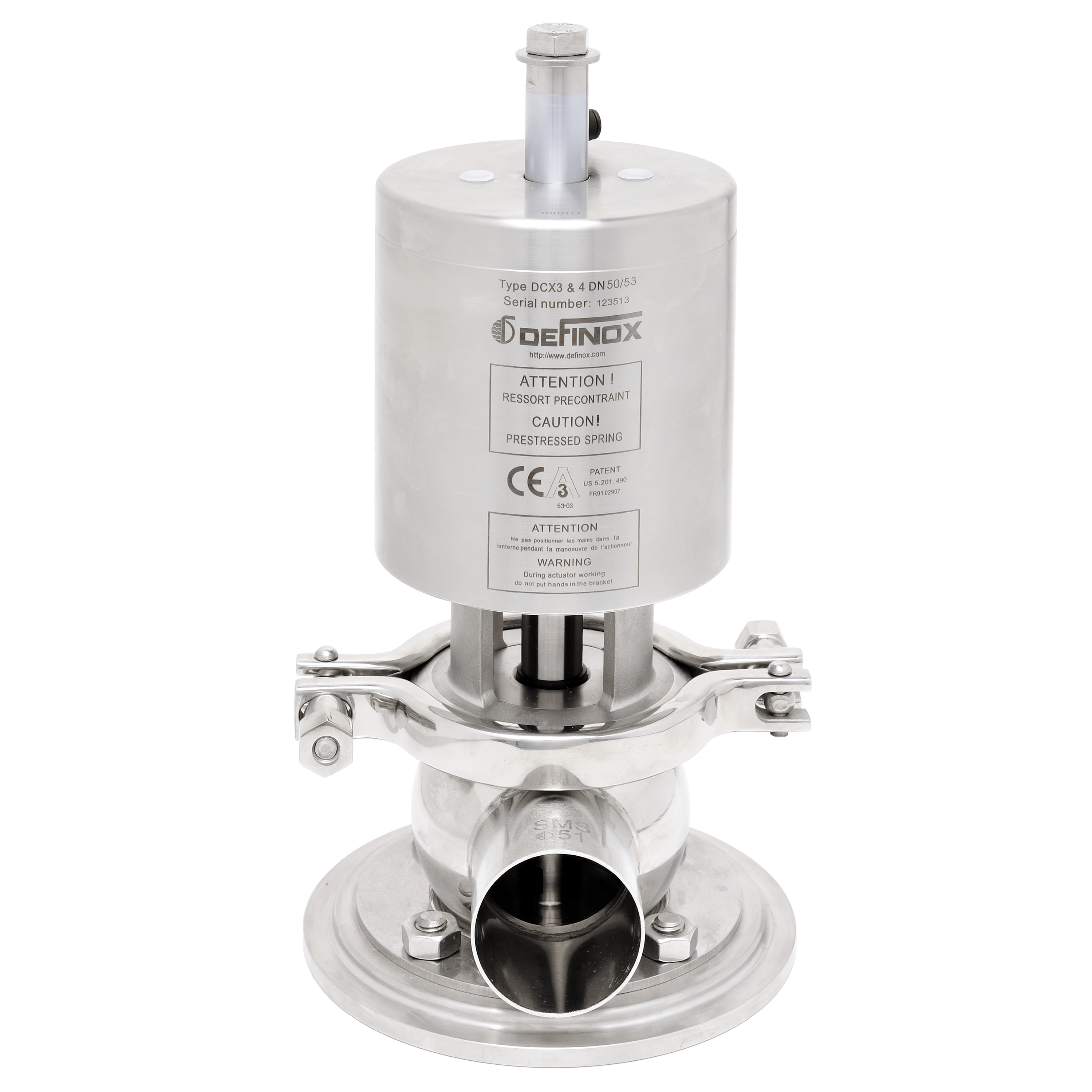

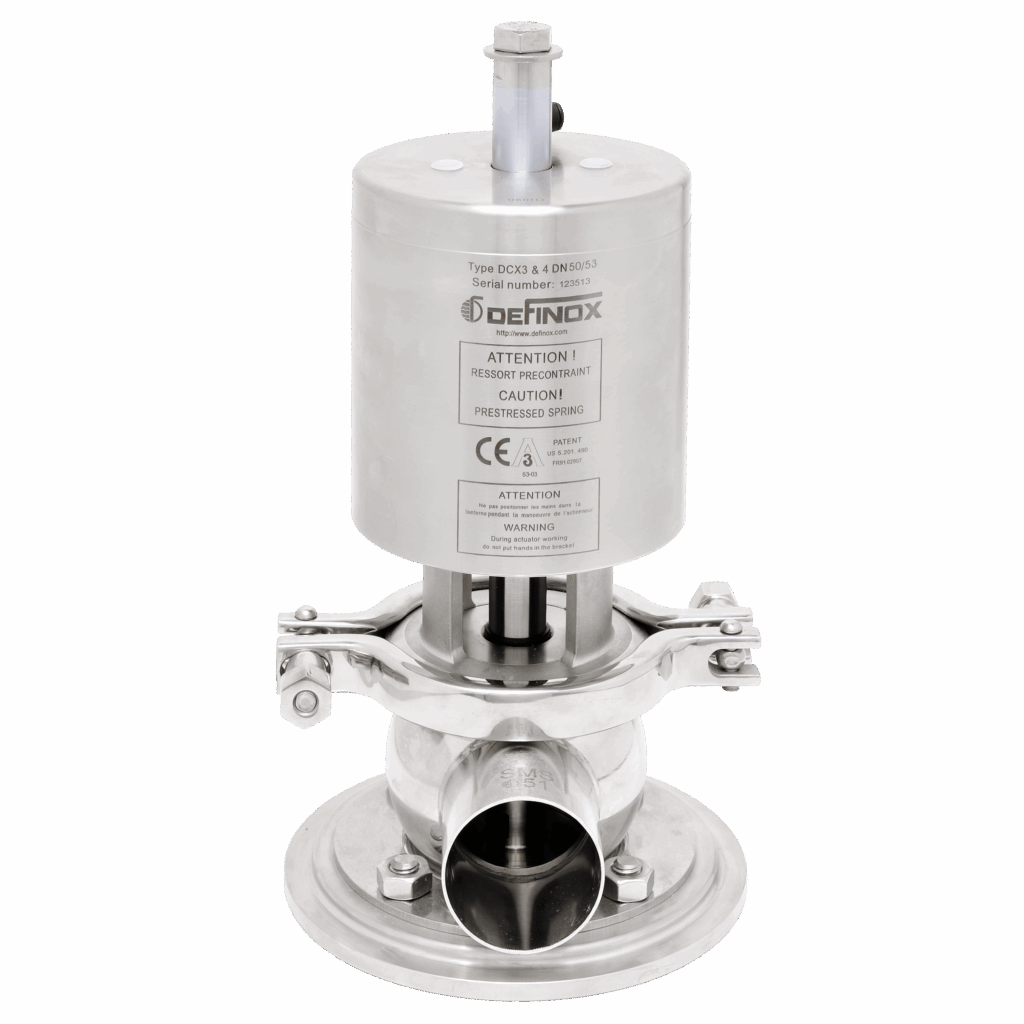

Definox DCX3 FdC – Tank Bottom Single Sealing Shut Off Valves
SPECIFICATIONS
Size Range: 1”, 1-1/2”, 2”, 2-1/2”, 3”, 4”
Materials:
Body/Stem: 316L SS
Operator: 304 SS
Valve seals: PFA floating plug seal, FKM stem seal & body seal
Optional seals: EPDM, FKM, or Silicone plug seal, EPDM, FKM, or Silicone stem & body seal
Connections: OD tube butt weld, Sanitary clamp (45º outlet), Others upon request
Tank Connections: Special tank flange for welding
Options: Long stroke for improved solids handling
Signal Equipment: ICS Control top – valve sizes 1” – 3”, ACS Control top – valve sizes 4” – 6”, Network options: point-to-point & AS-i (others upon request)
Surface Finish: Ra Interior = 32Ra, Ra Exterior = 40-50Ra
Features:
- Patented PFA floating plug seal that is easily cleaned during CIP and offers outstanding sealing at high temperatures and excellent chemical resistance.
- Body & plug shape provide minimal fluid retention area.
- Rising plug or lowering plug type depending on the application.
- Heavy-duty stainless steel pneumatic actuator that is capable of function changes: NO (Normally Open) – NC (Normally Closed) – DA (Double Acting).
- Clamp-style operator connection (manual and automated) for easy inspection and maintenance.
- Heavy wall machined spherical bodies guarantee excellent resistance to thermal expansion and contraction.
- Body configurations: DCX3 FdC (L).
Service Conditions
Max. temperature: 284°F (depending on seal type)
Min. temperature: 23°F
Sealing Pressure: 101 psi
Max. working pressure: 87 psi
Actuator air supply: 80 psi Minimum / 116 psi Maximum
Vacuum resistance: 0.4 cm3/s
