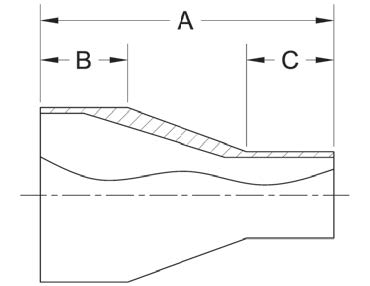

S31S SHORT CONCENTRIC REDUCER, WELD ENDS

Part Number	Size (inches)	A	B (min.)	C (min.)	STP File
S31S-.75X.50	3/4 X 1/2	2.125	1.000	1.000	STP
S31S-1X.50	1 X 1/2	2.500	1.000	1.000	STP
S31S-1X.75	1 X 3/4	2.125	1.000	1.000	STP
S31S-1.5X.75	1 1/2 X 3/4	3.000	1.000	1.000	STP
S31S-1.5X1	1 1/2 X 1	2.500	1.000	1.000	STP
S31S-2X1	2 X 1	3.375	1.000	1.000	STP
S31S-2X1.5	2 X 1 1/2	2.500	1.000	1.000	STP
S31S-2.5X1.5	2 1/2 X 1 1/2	3.375	1.000	1.000	STP
S31S-2.5X2	2 1/2 X 2	2.500	1.000	1.000	STP
S31S-3X1.5	3 X 1 1/2	4.250	1.500	1.000	STP
S31S-3X2	3 X 2	3.375	1.500	1.000	STP
S31S-3X2.5	3 X 2 1/2	2.625	1.500	1.000	STP
S31S-4X2	4 X 2	5.125	1.500	1.000	STP
S31S-4X2.5	4 X 2 1/2	4.250	1.500	1.000	STP
S31S-4X3	4 X 3	3.875	1.500	1.500	STP
S31S-6X3	6 X 3	7.250	2.000	1.500	STP
S31S-6X4	6 X 4	5.625	2.000	1.500	STP
