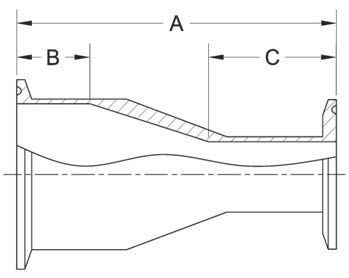

S31S 14MP SHORT CONCENTRIC REDUCER, CLAMP X CLAMP

Part Number	Size (inches)	A	B (I.D) (min.)	C (I.D.) (min.)	STP File
S31S-14MP-.75X.50	3/4 X 1/2	3.125	0.375	1.125	STP
S31S-14MP-1X.50	1 X 1/2	3.500	0.375	1.125	STP
S31S-14MP-1X.75	1 X 3/4	3.125	0.375	1.125
S31S-14MP-1.5X.75	1 1/2 X 3/4	4.000	0.375	1.125	STP
S31S-14MP-1.5X1	1 1/2 X 1	3.500	0.375	1.125	STP
S31S-14MP-2X1	2 X 1	4.375	0.375	1.125
S31S-14MP-2X1.5	2 X 1 1/2	3.500	0.375	1.125	STP
S31S-14MP-2.5X1.5	2 1/2 X 1 1/2	4.375	0.375	1.125
S31S-14MP-2.5X2	2 1/2 X 2	3.500	0.375	1.125	STP
S31S-14MP-3X1.5	3 X 1 1/2	5.250	0.375	1.125
S31S-14MP-3X2	3 X 2	4.375	0.375	1.125
S31S-14MP-3X2.5	3 X 2 1/2	3.625	0.375	1.125	STP
S31S-14MP-4X2	4 X 2	6.250	0.375	1.125	STP
S31S-14MP-4X2.5	4 X 2 1/2	5.375	0.375	1.125	STP
S31S-14MP-4X3	4 X 3	5.000	0.375	1.625	STP
S31S-14MP-6X3	6 X 3	8.500	0.375	1.625	STP
S31S-14MP-6X4	6 X 4	7.000	0.375	1.625	STP
